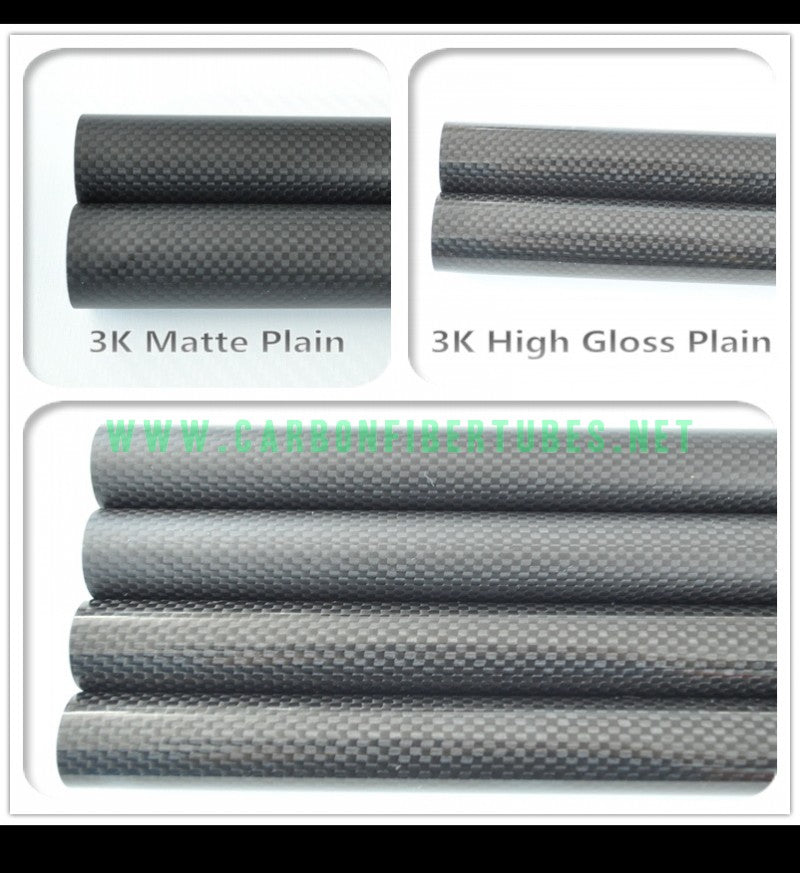

OD 5mm - 10mm X 500MM 100% Roll Wrapped Carbon Fiber Tube 3K /Tubing

Regular price $5.50

Shipping calculated at checkout.

Roll Wrapped High Performance Carbon Fibre Tube 3k  For Use In Projects Requiring Enhanced Strength In Multiple Axis.

Whether your project is big or small, we are bound to have round carbon fiber  tubing that suits your needs. As an added bonus we are generally able to ship  right away on most products listed in our store! Aside from aesthetic variations  of our many round stock tubes, you might also wish to consider their superb  mechanical properties as well. That is after all the main reason we love carbon  fiber so much! Of course it's an added bonus that it looks incredible too.

Roll wrapped tubing is manufactured using multiple layers of prepreg carbon  fiber (and if noted, other) materials. In general each layer is about 0.006  inches thick which means that a tube with a wall thickness of 0.060 inches will  typically be composed of 9-10 individual layers of carbon fiber. The number of  layers (plys) allows us to vary the orientation of the fibers throughout the  thickness, creating a high performance, engineered product.

Mechanical Properties & Specification

The Tube Is Available The Following Lengths: 500mm-2500mm. If You Have A Large Order We Can Produce.

Internal Diameter (ID, mm) Outer Diameter (OD, mm)

Wall Thickness (mm)

Length (mm)

Weight g/m

3.0 5.0 1.0 500 21
4.0 6.0 1.0 500 24
5.0 6.0 0.5 500 16
5.0 7.0 1.0 500 28
6.0 7.0 0.5 500 17
4.0 8.0 2.0 500 58
5.0 8.0 1.5 500 49
6.0 8.0 1.0 500 34
7.0 8.0 0.5 500 18
7.0 9.0 1.0 500 38
8.0 9.0 0.5 500 21
6.0 10.0 2.0 500 76
8.0 10.0 1.0 500 42
9.0 10.0 0.5 500 22

 These tubes are on hot sale ,If you make larger order, we could give you favorable price.

  • Bulk purchases of carbon fiber tube please contact Connie for best price, Email: wh17822@gmail.com
  • Customize order of carbon fiber tube please contact Kitty, Email: wh59ok@gmail.com
  • For other question please contact Kitty, Email: wh59ok@gmail.com

Composition

Roll wrapped tubing is manufactured using multiple layers of prepreg carbon  fiber (and if noted, other) materials. In general each layer is about 0.006  inches thick which means that a tube with a wall thickness of 0.060 inches will  typically be composed of 9-10 individual layers of carbon fiber. The number of  layers (plys) allows us to vary the orientation of the fibers throughout the  thickness, creating a high performance, engineered product..

Comparison With Steel And Aluminium Tube



Propertyth> CF Fabric (50% at 0°/50% at 90°) CF Uni-Directional Steel Aluminium
Density (g/cc) 1.60 1.60 8.0 2.7
Youngs Modulus 0°(GPa) 70 135 207 72
Youngs Modulus 90°(GPa) 70 10 207 72
Ult. tensile Strength 0°(MPa) 600 1500 990 460
Ult. comp. Strength 0°(MPa) 570 1200 990 460
Ult. tensile Strength 90°(MPa) 600 50 990 460
Ult. comp. Strength 90°(MPa) 570 250 990 460

Applications

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Oil & Gas
  • Robotic Arms & Supports
  • Power Generation
  • Window Shades
  • Wastewater Treatment
  • Advertising Panels
