HaoZhong Carbon Fiber Products

30mm Carbon Fiber Tube 1000mm | ID 20/25/26/27/28mm | 3K T300 | HaoZhong

30mm Carbon Fiber Tube 1000mm | ID 20/25/26/27/28mm | 3K T300 | HaoZhong

Regular price $90.09 USD
Regular price Sale price $90.09 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Bulk customization contact: wh59ok@gmail.com

The widest spread of walls in this size family sits under this 30mm OD listing: 5mm at 30x20, then 2.5mm, 2mm, 1.5mm and 1mm as the bore grows through 25mm, 26mm, 27mm and 28mm.

  • OD 30mm; ID 20mm, 25mm, 26mm, 27mm or 28mm
  • Wall: 5mm, 2.5mm, 2mm, 1.5mm or 1mm

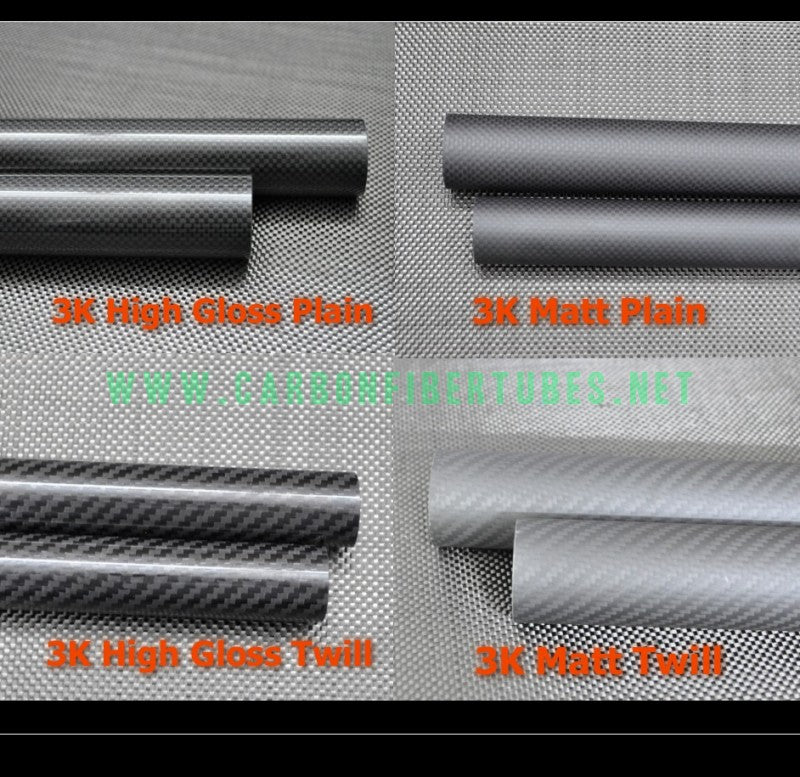

  • 3K plain or twill, matte or glossy
  • Length 1000mm; 1pcs, 2pcs or 4pcs

The thick 30x20 section is aimed at loaded booms and stressed frame joints, while the thin-wall bores suit sleeves, spacers and housings. Specifying the bore first and letting the wall follow is the usual way these variants get called out on a drawing.

Standard cuts are 500mm and 1000mm. Other lengths, bores and finishes are quoted on request; custom sizes from 10 pcs.
