HaoZhong Carbon Fiber Products

22mm Carbon Fiber Tube 1000mm | ID 18-20mm | 3K Twill | HaoZhong

22mm Carbon Fiber Tube 1000mm | ID 18-20mm | 3K Twill | HaoZhong

Regular price $27.72 USD
Regular price Sale price $27.72 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Bulk customization contact: wh59ok@gmail.com

Three bores sit inside one 22mm outside diameter: 18mm, 19mm and 20mm, giving walls of 2mm, 1.5mm and 1mm. Every variant is 1000mm in 3K twill. Each wall thickness belongs to its own bore, so weight and stiffness follow the variant picked.

  • OD 22mm; ID 18mm, 19mm or 20mm
  • Wall: 2mm, 1.5mm or 1mm

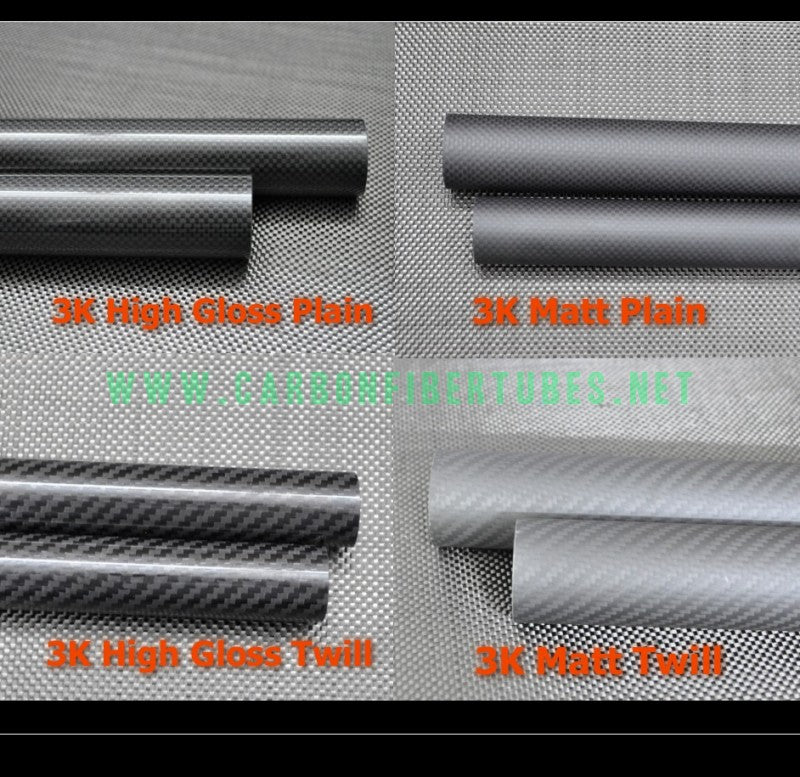

  • 3K twill weave, glossy or matte
  • Length 1000mm; sold in 1pcs, 2pcs or 4pcs

The 22x18 wall is the one for loaded booms and frame tubes; the 22x20 build is used where a 20mm insert has to slide through. Glossy and matte builds of the same bore are both listed, so finish can be matched within one assembly.

Cuts of 500mm and 1000mm are standard. Other lengths, bores or finishes are quoted on request, with custom sizes from 10 pcs.
