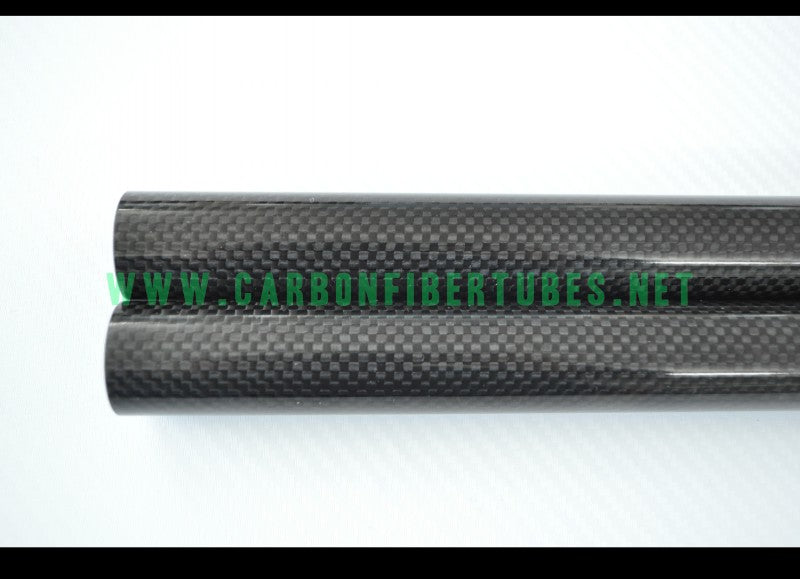

OD 21mm - OD 30mm X 1000MM 100% Roll Wrapped Carbon Fiber Tube 3K /Tubing Plain/Twill Glossy/Matte

Regular price $20.00

Shipping calculated at checkout.

Roll Wrapped High Performance Carbon Fibre Tube 3k For Use In Projects Requiring Enhanced Strength In Multiple Axis.

Whether your project is big or small, we are bound to have round carbon fiber tubing that suits your needs. As an added bonus we are generally able to ship right away on most products listed in our store! Aside from aesthetic variations of our many round stock tubes, you might also wish to consider their superb mechanical properties as well. That is after all the main reason we love carbon fiber so much! Of course it's an added bonus that it looks incredible too.

Roll wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product.

Mechanical Properties & Specification

The Tube Is Available The Following Lengths: 500mm-2500mm. If You Have A Large Order We Can Produce.

Internal Diameter (ID, mm) Outer Diameter (OD, mm)

Wall Thickness (mm)

Length (mm)

Weight g/m

19.0 21.0 1.0 1000 95
18.0 22.0 2.0 1000 190
19.0 22.0 1.5 1000 136
20.0 22.0 1.0 1000 98
21.0 23.0 1.0 1000 105
20.0 24.0 2.0 1000 206
22.0 24.0 1.0 1000 108
20.0 25.0 2.5 1000 266
21.0 25.0 2.0 1000 223
22.0 25.0 1.5 1000 167
23.0 25.0 1.0 1000 112
22.0 26.0 2.0 1000 228
24.0 26.0 1.0 1000 121
25.0 27.0 1.0 1000 122
25.0 28.0 1.5 1000 186
26.0 28.0 1.0 1000 130
27.0 29.0 1.0 1000 135
20.0 30.0 5.0 1000 595
25.0 30.0 2.5 1000 325
26.0 30.0 2.0 1000 262
27.0 30.0 1.5 1000 200
28.0 30.0 1.0 1000 135

 These tubes are on hot sale ,If you make larger order, we could give you favorable price.

  • Bulk purchases of carbon fiber tube please contact Connie for best price, Email: wh17822@gmail.com
  • Customize order of carbon fiber tube please contact Kitty, Email: wh59ok@gmail.com
  • For other question please contact Kitty, Email: wh59ok@gmail.com

Composition

Roll wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product..

Comparison With Steel And Aluminium Tube

Propertyth> CF Fabric (50% at 0°/50% at 90°) CF Uni-Directional Steel Aluminium
Density (g/cc) 1.60 1.60 8.0 2.7
Youngs Modulus 0°(GPa) 70 135 207 72
Youngs Modulus 90°(GPa) 70 10 207 72
Ult. tensile Strength 0°(MPa) 600 1500 990 460
Ult. comp. Strength 0°(MPa) 570 1200 990 460
Ult. tensile Strength 90°(MPa) 600 50 990 460
Ult. comp. Strength 90°(MPa) 570 250 990 460

Applications

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Oil & Gas
  • Robotic Arms & Supports
  • Power Generation
  • Window Shades
  • Wastewater Treatment
  • Advertising Panels
